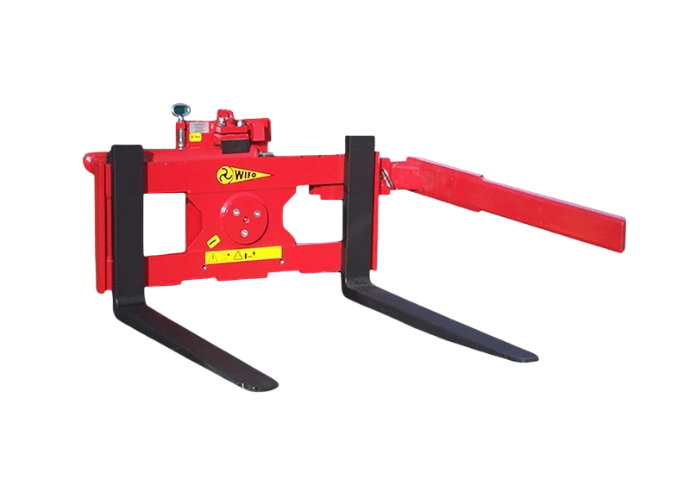

Fixed Sidearm: MODEL - K53-I

  • Rotator with a rotation angle of 180° (left rotation as standard).
  • Extremely open construction for optimal visibility.
  • High quality tipping shaft with sleeve bearing.
  • Available with adaptor plates for front end loader and skidsteer.
  • Fixed sidearm.
  • Fixed tine adjustable in width.
  • Adapter frame for skid steer and front loader.

* Forks are sold Separately

Available Models:

K53a-I: Max. load of 5511 lbs., Class II 16" carrier height, 6.3" thick, 5.15" centre of gravity,14" high side tine*, 39.4" carrier width

K53c-I: Max. load of 7716 lbs., Class III 20" carrier height, 6.7" thick, 5.2" centre of gravity, 18" high side tine*, 47.25" carrier width

* calculated from the top of the fork to the bottom of the fork carrier

WifoBox Rotators

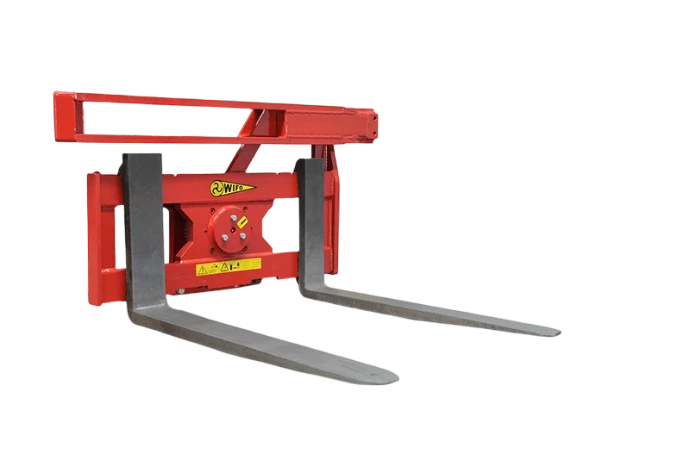

Folding Sidearm: MODEL - K53-O

  • Rotator with a rotation angle of 180° (left rotation as standard).
  • Extremely open construction for optimal visibility.
  • High quality tipping shaft with sleeve bearing.
  • Available with adaptor plates for front end loader and skidsteer.
  • Folding sidearm.
  • Folding sidearm adjustable in width.
  • Weld on sleeve for folding side tine
  • Adapter frame for skid steer and front loader.

* Forks are sold Separately

Available Models:

K53a-O: Max. load of 5511 lbs., Class II 16" carrier height, 6.3" thick, 6.5" centre of gravity,26" high side tine*, 39.4" carrier width

K53c-O: Max. load of 7716 lbs., Class III 20" carrier height, 6.7" thick, 5.75" centre of gravity, 30" high side tine*, 47.25" carrier width

* calculated from the top of the fork to the bottom of the fork carrier

Box Rotators
