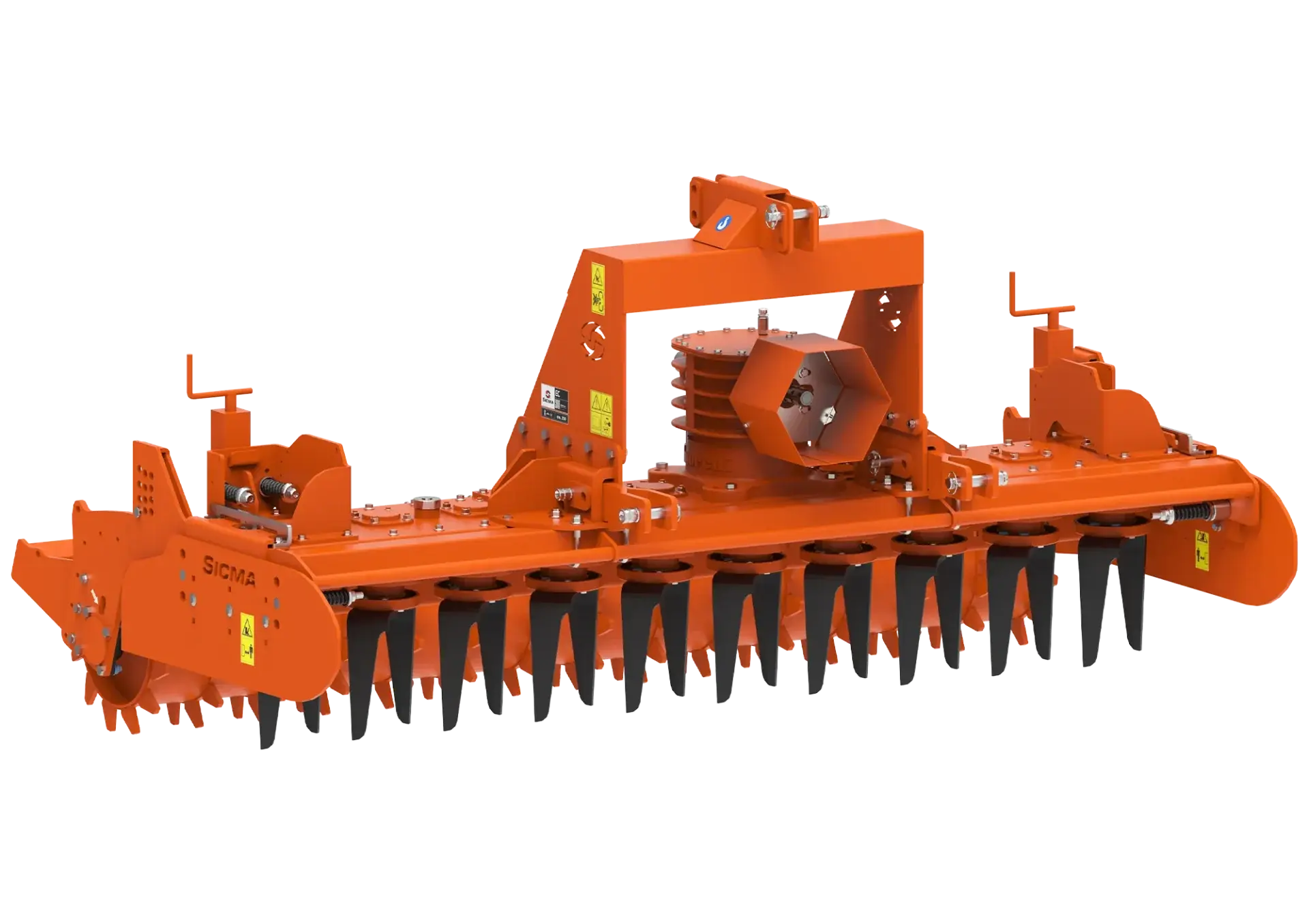

Sicma EC Power Harrow

Sicma EC Power Harrow

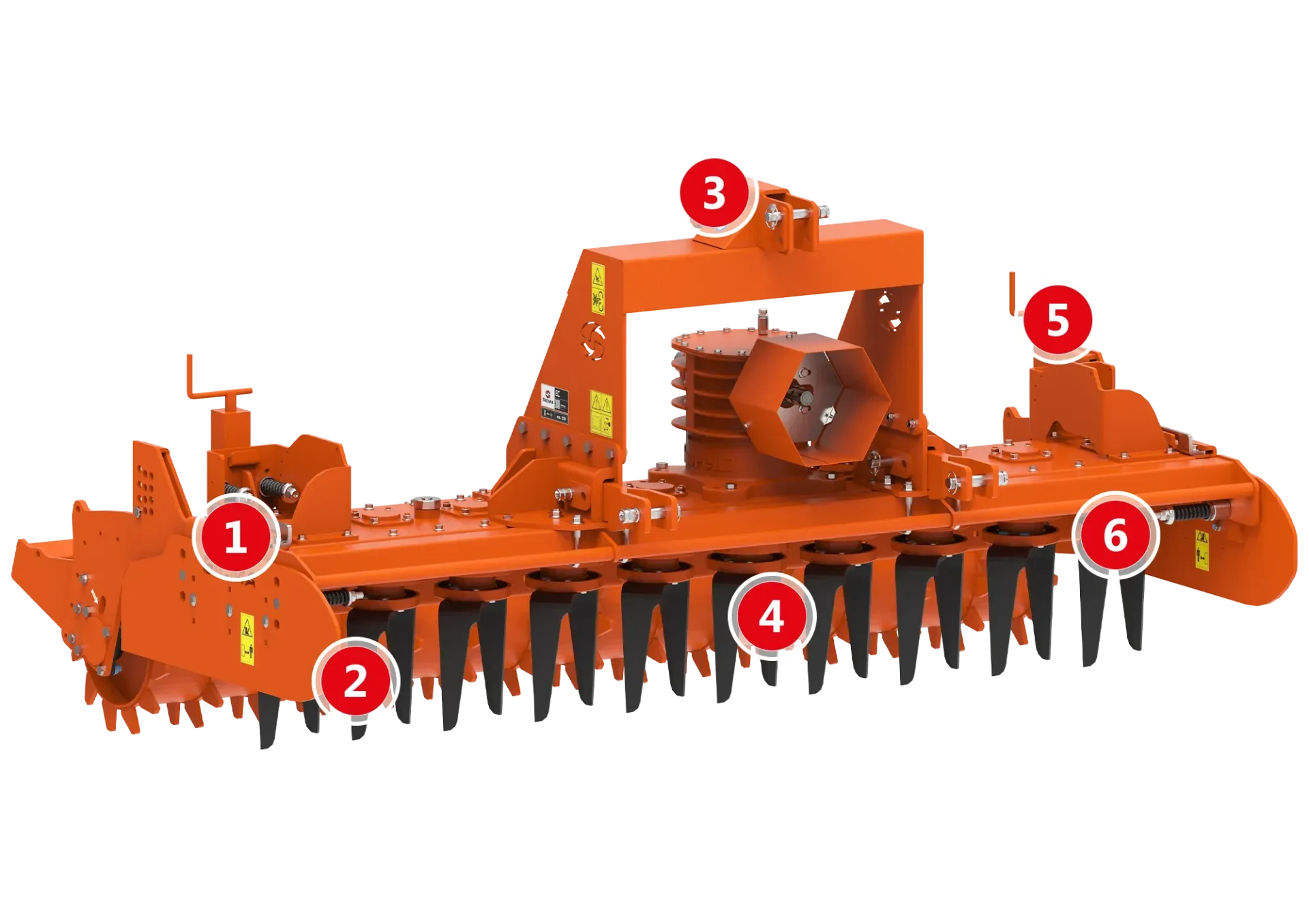

Technical Features

1 Double-bottom tank (Mod. 250-275-300)
2 Side deflectors
3 3rd point coupling preconfigured for combination with seed drill
4 Every blade is mounted according to a specific reciprocal direction which reduces load peaks on drive components, minimising vibrations

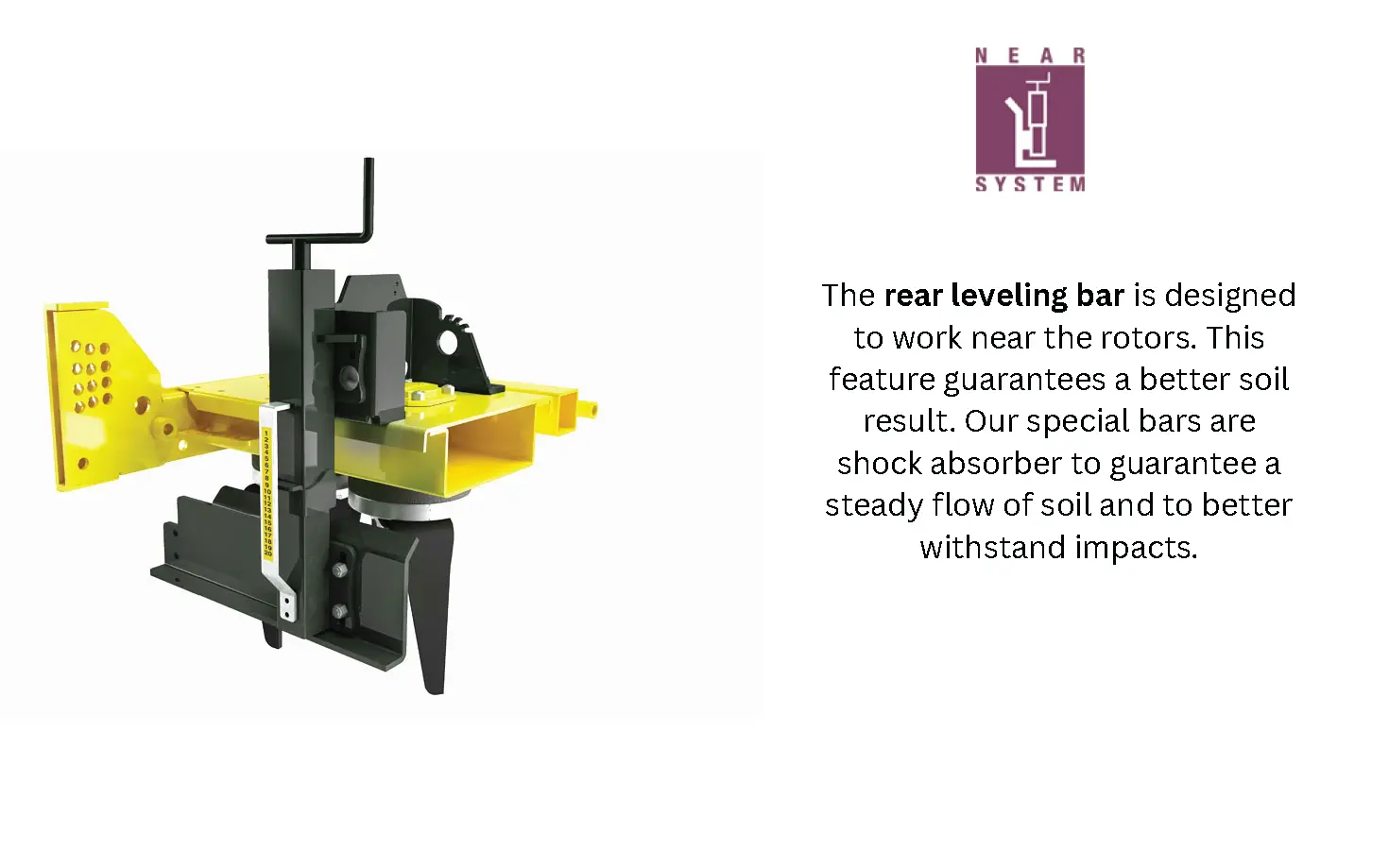

5 Quick adjusting levelling bar

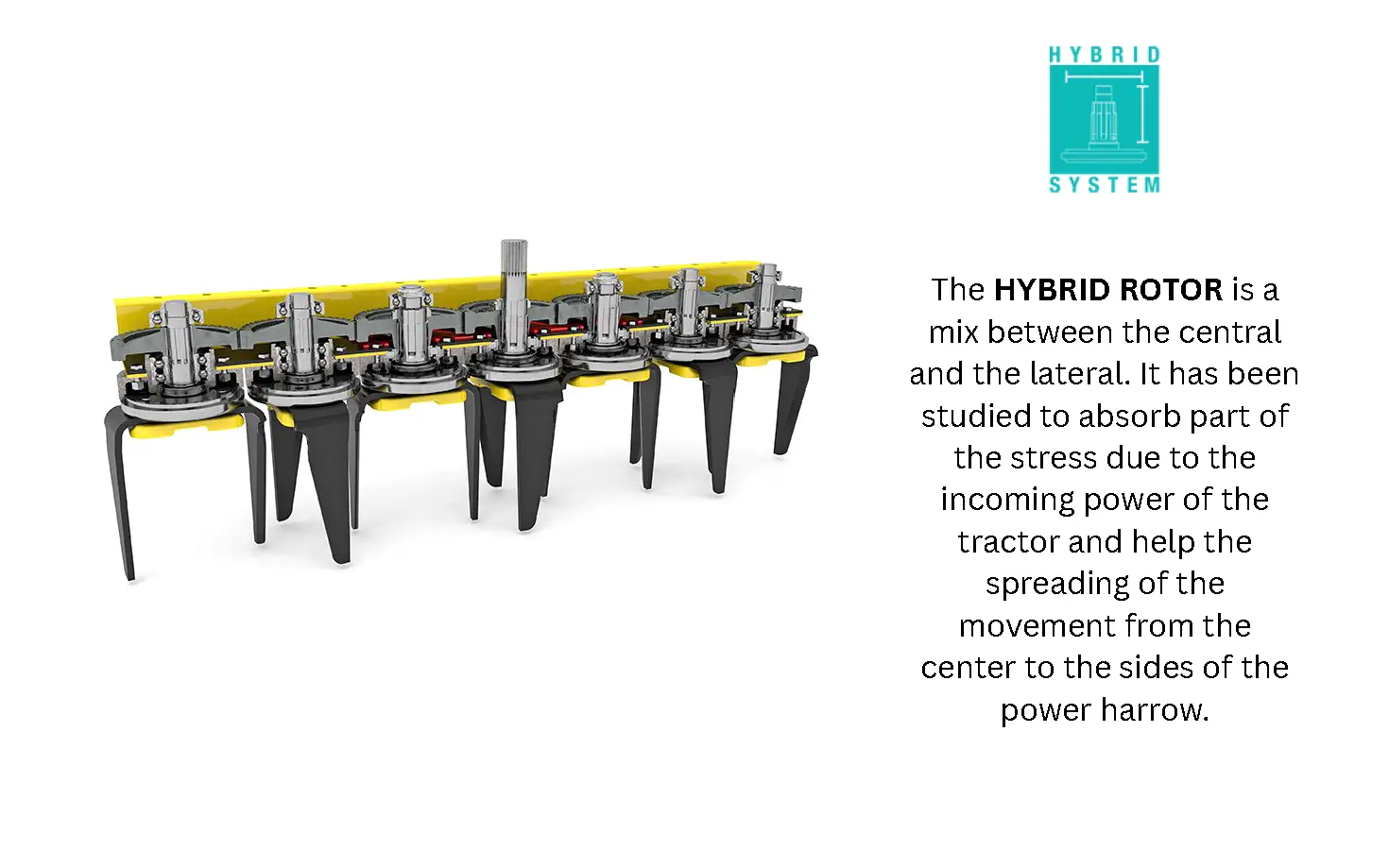

6 Narrow pass rotors

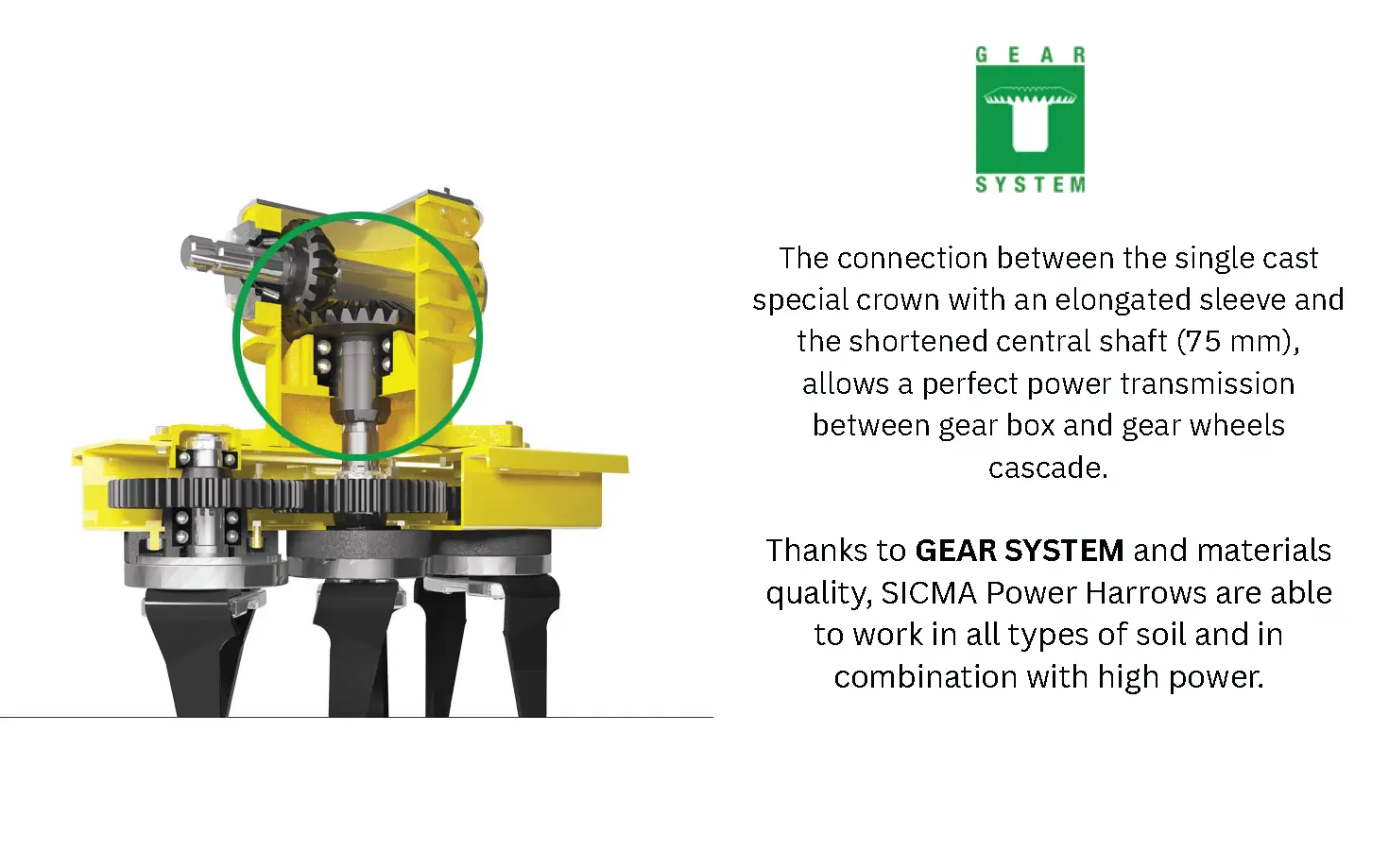

7 1-speed gearbox

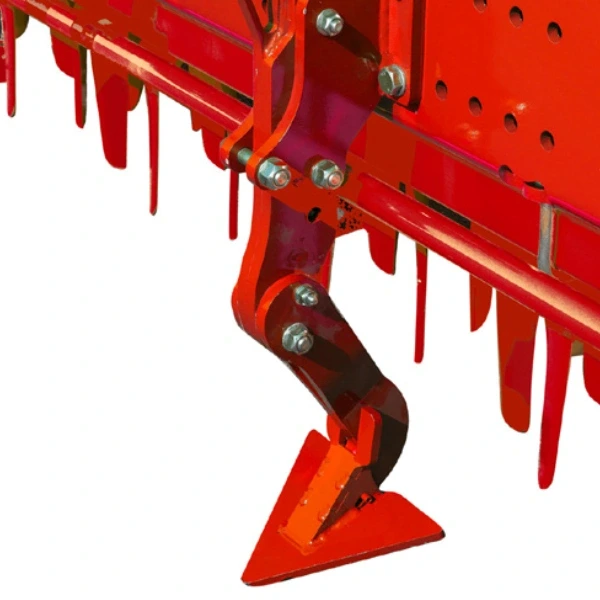

Pair of track eradicator tines with shear bolt

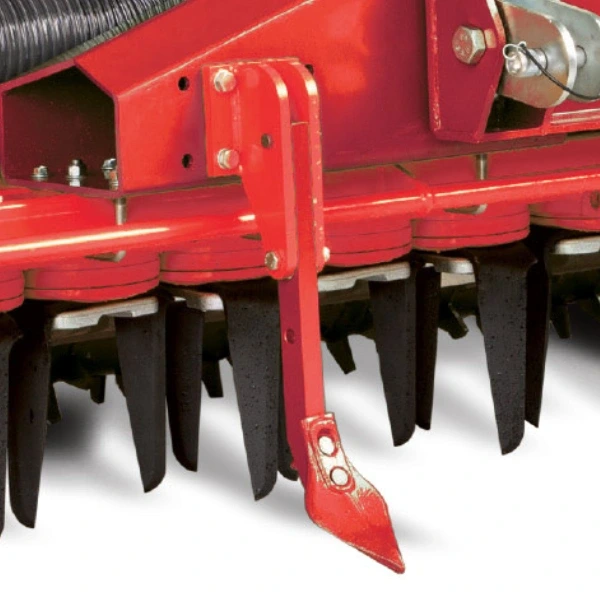

Pair of straight track eradicator tines

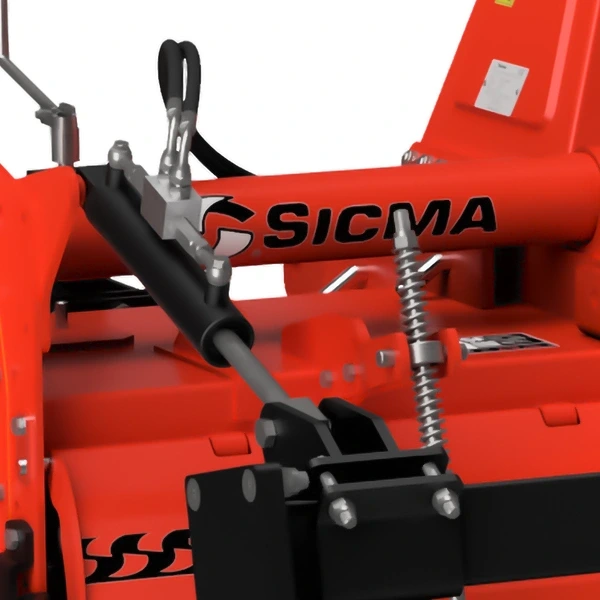

Hydraulic cylinders for roller adjustment

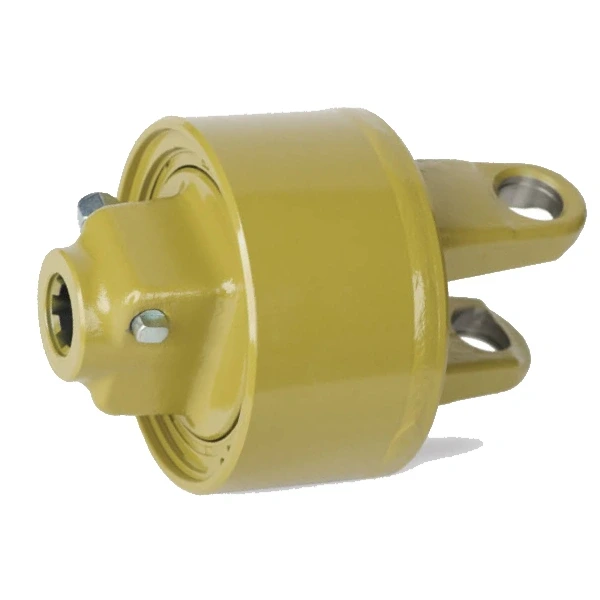

Universal shaft with automatic clutch

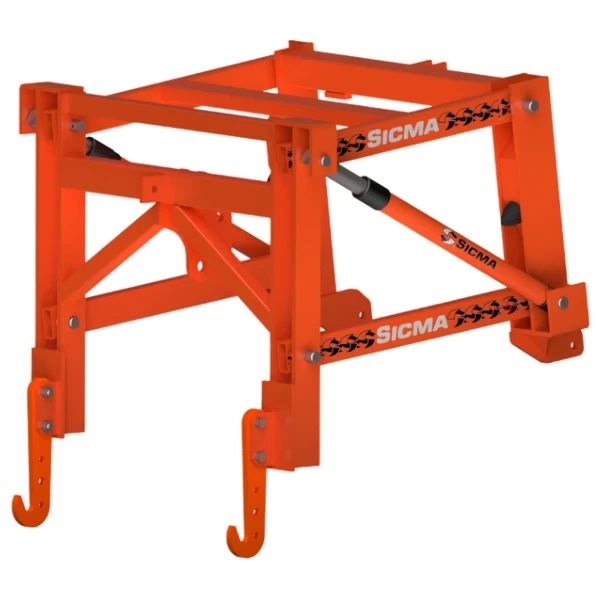

Hydraulic rear linkage for seeder (including pulling cables)

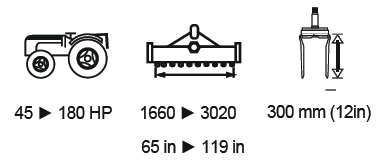

Specification EC 250 EC 300
Required HP 65 – 180 HP 75 – 180 HP
Working Width 2,540 mm (100") 3,020 mm (118")
Transport Width 2,580 mm (101") 3,060 mm (121")
Number of Rotors 10 12
Blade Spacing 300 mm (12") 300 mm (12")
Weight – Base 957 kg (2,109 lbs) 1,075 kg (2,369 lbs)
Weight – Cage Roller 1,100 kg (2,425 lbs) 1,244 kg (2,742 lbs)
Weight – Packer Roller 1,026 kg (2,262 lbs) 1,154 kg (2,544 lbs)
Gearbox Speeds 540 rpm or 1000 rpm 540 rpm or 1000 rpm
Available Rollers Cage, Packer, Spiral, Smooth

EC Parts Manual
