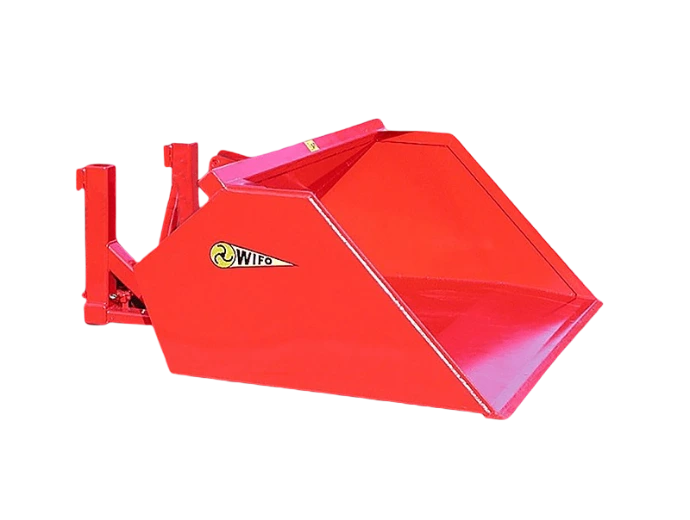

Direct Mount Produce Buckets: MODEL - HODF
- FEM fork carriage mounted
- Extremely robust bulk bucket for industrial applications.
- Double hinge device for a minimum of loss in dump height.
- All rotating points have bearings.
- Complete with hydraulic hoses and quick connectors.
Available Models:
HOD-150F: 59" x 61" x 33" (WxDxH), volume of 1.44 cu vd, 31.5" centre of gravity
HOD-175F: 69" x 61" x 33" (WxDxH), volume of 1.70 cu yd, 31.5" centre of gravity
HOD-200F: 79" x 61" x 33" (WxDxH), volume of 1.96 cu yd, 31.5" centre of gravity
HOD-225F: 89" x 61" x 33" (WxDxH), volume of 2.22 cu yd, 31.5" centre of gravity

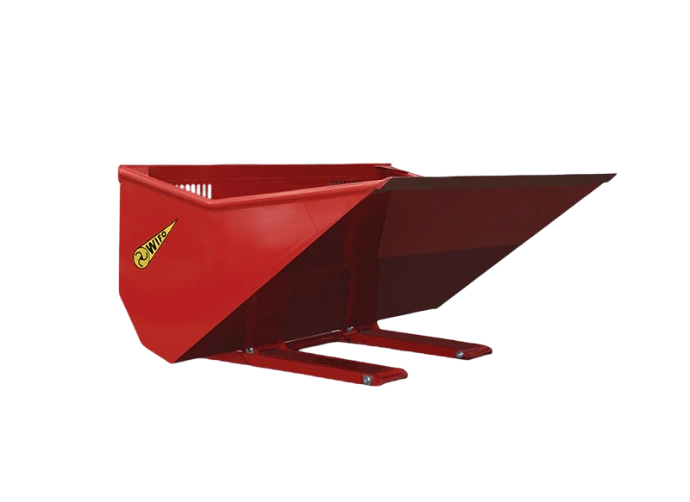

Fork Mount Produce Bucket: MODEL - HOD
- Extremely robust bulk bucket for industrial applications.
- Double hinge device for a minimum of loss in dump height.
- All rotating points have bearings.
- Complete with hydraulic hoses and quick connectors.
- Round edge to prevent damage
Available Models:
HOD-150: 59" x 61" x 33" (WxDxH), volume of 1.44 cu vd, 35" centre of gravity
HOD-175: 69" x 61" x 33" (WxDxH), volume of 1.70 cu yd, 35" centre of gravity
HOD-200: 79" x 61" x 33" (WxDxH), volume of 1.96 cu yd, 35" centre of gravity
HOD-225: 89" x 61" x 33" (WxDxH), volume of 2.22 cu yd, 35" centre of gravity

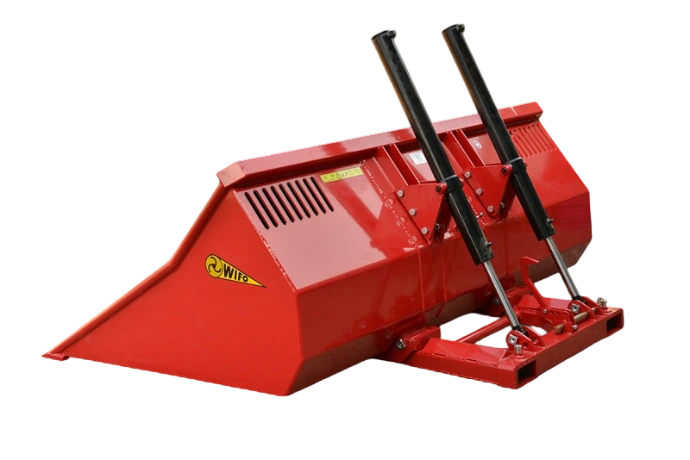

HD Fork Mount Produce Bucket: MODEL - HOD-Z
- Extremely robust bulk bucket for industrial applications.
- Double hinge device for a minimum of loss in dump height.
- All rotating points have bearings.
- Complete with hydraulic hoses and quick connectors
- Round edge to prevent damage
Available Models:
HOD-Z-200: 79" x 61" x 33" (WxDxH), volume of 1.96 cu vd, 35.4" centre of gravity
HOD-Z-225: 89" x 61" x 33" (WxDxH), volume of 2.22 cu yd, 35.4" centre of gravity
HOD-Z-250: 99" x 61" x 33" (WxDxH), volume of 2.48 cu yd, 35.4" centre of gravity
HOD-Z-275: 108" x 61" x 33" (WxDxH), volume of 2.75 cu yd, 35.4" centre of gravity
